Flysky FS-i6X 2.4GHz 10CH AFHDS 2A RC Transmitter With FS-iA10B 2.4GHz 6CH Receiver Specifications and Features :
When using a drone, a transmitter is one of the most important components. You can’t fly a multirotor without it because it uses radio signals to send commands wirelessly to a Radio Receiver, which is connected to an aircraft or multirotor that is being remotely controlled.
The Fly sky FS-i6X 2.4GHz 6CH AFHDS 2A RC Transmitter With FS-iA10B 2.4GHz 10CH Receiver.
The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and presented by FLYSKY is specially developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity, FLYSKY’s AFHDS technology is considered to be one of the leaders in the RC market today.
Bidirectional Communication :
Multi-channel Hopping Frequency :
Omni-directional Gain Antenna :
Unique ID Recognition System :
Low Power Consumption :
Specifications and Features :
Specification for FS-i6X RC Transmitter :
- Item: FS-i6X RC Transmitter
- Tx Channel: 10
- Model Type: Fixed-Wing/Glider/Helicopter
- RF Range: 2.408-2.475GHz
- RF Power : < 20dBm
- RF Channel: 135
- Bandwidth : 500KHz
- 2.4GHz System : AFHDS 2A / AFDHS
- Modulation Type: GFSK
- Stick Resolution: 4096
- Low Voltage Warning: < 4.2V
- DSC port: PS/2 Port PPM
- Chargeable: No
- Antenna Length: 26mm (Dual Antenna)
- Weight: 392g
- Power : 6V DC 1.5A
- Display: STN Transflective Display, LCD 128×64 Lattice, VA 73x39mm, LCD with white backlight
- Size : 174 x 89 x 190 mm
- Online Update: Yes
- Color: Black
- Certificate: CE0678, FCC
Specifications for FS-iA10B RC Receiver:
- Rx Channels: 10
- Suitable models: Airplane / glider / helicopter Health
- Frequency range :2.4-2 .48 GHz
- Transmitting power: not more than 20dBm
- Receiver sensitivity:-105dBm
- 2.4G modes: automatic frequency second generation digital system
- Encoding: GFSK
- Antenna length: 26 mm * 2 (dual antenna)
- Weight: 19.3 g
- Input power :4.0-6 .5 V DC
- Dimensions: 47 x 33.1 x 14.7 mm
- Color: Black
- Certification: CE0678, FCC
- i-BUS Interface: Yes
- Data acquisition interface: Yes
- Color: Black.
- Model Type : Airplane / Glider / Helicopter
- Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i10, FS-GT2E, FS-GT2G

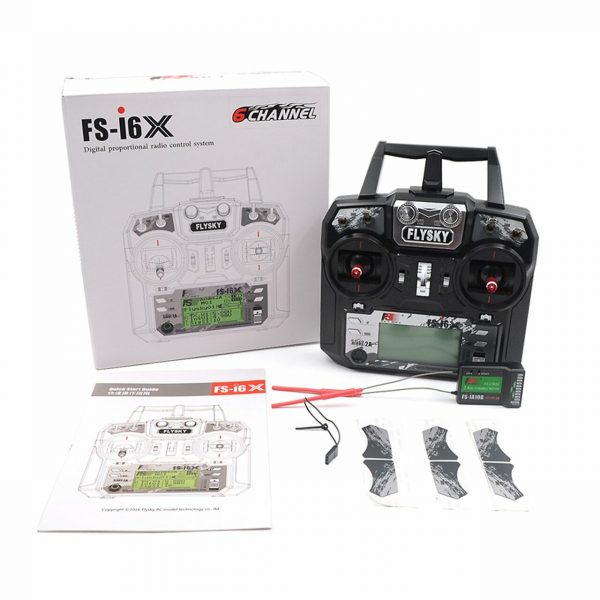

Package Includes :
1 x Fly sky FS-i6X 10CH 2.4GHz AFHDS 2A RC Transmitter.
1 x FS-iA10B 2.4GHz 10CH Receiver with Binding cable.
1 x PS2 to USB Update Cable.
1 x User Manual.
