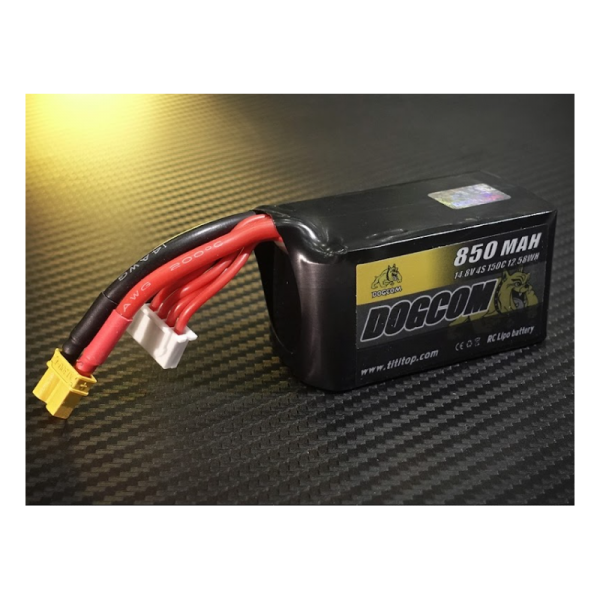

DOGCOM 150C 4S 850mAh 14.8V High Perfomance FPV Racing Freestyle Multirotor Drone Lipo Battery XT30 Plug

2,099.00

Overview:

  • DOGCOM 150C 4S 850mAh 14.8V XT30 High Perfomance Lipo Battery
  • High & stable quality
  • Higher energy density
  • Lower internal resistance
  • Longer life cycle
  • Long warranty period, Dogcom offers 1 year after your order date.

Out of stock

SKU: SKU7789542 Categories: ,
Spread the love

DOGCOM 150C 4S 850mAh 14.8V XT30 High Performance Lipo Battery Description:

dog com mantisfpv australia website battery brand logo

Features:

  • High & stable quality
  • Higher energy density
  • Lower internal resistance
  • Longer life cycle
  • Long warranty period, Dogcom offers 1 year after your order date. (Directly with DOGCOM)

Specifications:

  • Capacity: 850mAh
  • Configuration: 14.8V / 4S1P / 4 Cells
  • Continuous Discharge Rate: 150C
  • Burst Discharge Rate: 300C
  • Dimensions: 58mm length x 30mm Width x 34mm Height
  • Weight: about 100g
  • Charge Plug: JST-XHR
  • Discharge Plug: XT30

Includes:

  • 1x DOGCOM 150C 4S 850mAh 14.8V LiPo Battery XT30

Why DOGCOM?

  • DOGCOM LiPo battery passed ISO9001:2000 international quality system certification, CE certification, UL certification, and ISO14001 environmental management system certification, all products stand for testing from customers.
  • DOGCOM uses world-class testing equipment and has a laboratory to carry out various tests for battery performance and material testing.
  • DOGCOM has the most advanced manufacturing process for a high rate LiPo battery, which can get an internal stability quality of a high rate LiPo battery.
  • DOGCOM has strict on-site management and improves the system to ensure the quality of the battery, and to provide customers with safe and reliable products.
  • DOGCOM brand always insists on technique first and adapts to market changes. Putting effort into providing users with international top products and services.

Dogcom Battery Disclaimer:

  • Li-Po and Li-Ion batteries must be cared for properly when stored, and NEVER charged, balanced, or discharged unattended.
  • ALWAYS be in the same room within line of sight of charging or discharging batteries.
  • NEVER charge or discharge batteries on a flammable surface.
  • Failure to follow these instructions may result in fire, personal injury, and/or property damage.
  • By purchasing this battery, you agree that Pyrodrone and the battery manufacturer are in no way responsible for consumer battery charging and care, or any of the risks associated with Li-Pos or Li-Ions.

Read More About Lipo Batteries by clicking the link below:
https://oscarliang.com/fpv-drone-guide/

Checkout our Frames Collection by clicking the link below:
https://thefpvproject.com/product-category/frames/

1S = 1 cell  = 3.7V
2S = 2 cells = 7.4V
3S = 3 cells = 11.1V
4S = 4 cells = 14.8V
5S = 5 cells = 18.5V
6S = 6 cells = 22.2V

For example, we call a 14.8V battery a “4-cell” or “4S” battery.

LiPo battery is designed to operate within a safe voltage range, from 3V to 4.2V. Discharging below 3V could cause irreversible performance loss and even damage to the battery. Overcharging above 4.2V could be dangerous and eventually cause a fire.

However, it’s advisable to stop discharging when it reaches 3.5V for battery health reasons. For example for a 3S Lipo, the max voltage is 12.6V, and you should land when the voltage reaches 10.5V (at 3.5V per cell).

Weight 0.3 kg
Dimensions 18 × 10 × 10 cm
KV Rating

1700 KV, 2450 KV
