Diatone Mamba Toka 2207.5 2450KV Motor / 1700kv (SOLD OUT) (Set of 4 Motors)

5,999.00

Overview:

  • The Mamba Toka 2207.5 Motor is a new series of motors by Diatone that is best suited for 5″ Freestyle Quadcopters.
  • 4s – 2450KV

This product is currently out of stock and unavailable.

SKU: SKU779903632 Category:
Spread the love

Description:

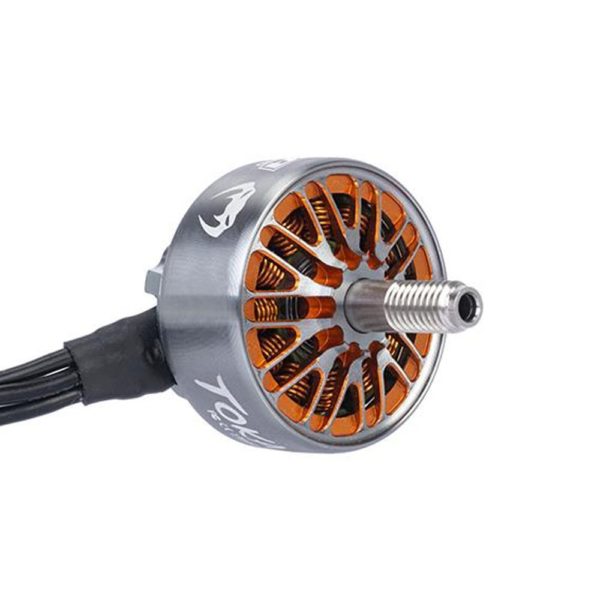

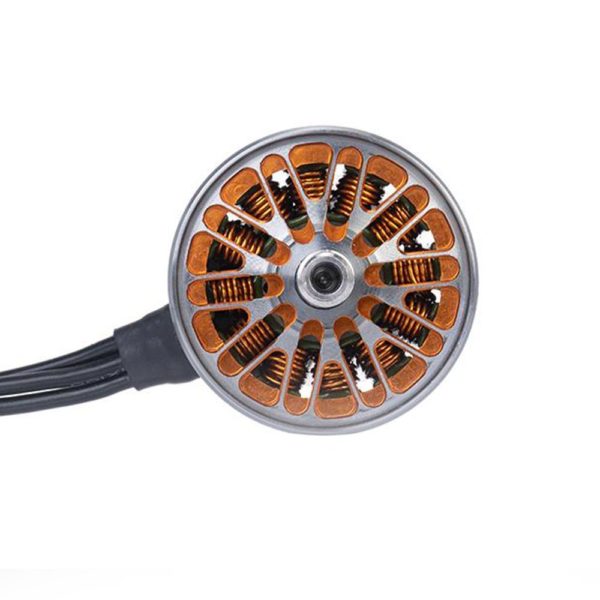

The Mamba Toka 2207.5 Motor is a new series of motors by Diatone that is best suited for the Roma F5 5″ Freestyle Quadcopter or similar quadcopters!

KV:2450

  • Overall Dimension: Φ28.5×32.65mm
  • Prop mounting shaft diameter: M5
  • Installation hole position:16×16mm,M3
  • Prop: 5inch~6inch
  • Bearing: 4*9*4
  • Diameter:4mm
  • Lead Wire Size:24AWG ×190mm
  • Slots/poles:12N14P
  • Magnet Wire: Class H,220℃ Enameled Wire
  • Stator Diamter:22mm
  • Stator Height:7.5mm
  • Rated Voltage: 3~4S (12.6V~16.8V)
  • Peak Current: 44.1A
  • Maximum Power: 706W
Weight 0.3 kg
Dimensions 18 × 10 × 10 cm
KV Rating

1700 KV, 2450 KV
