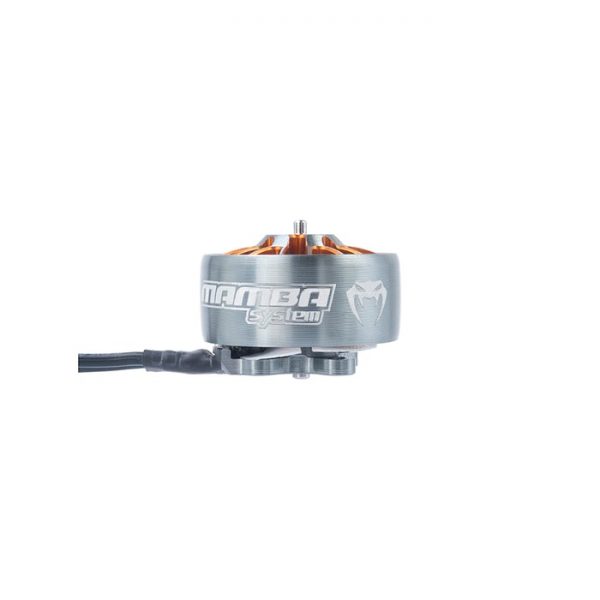

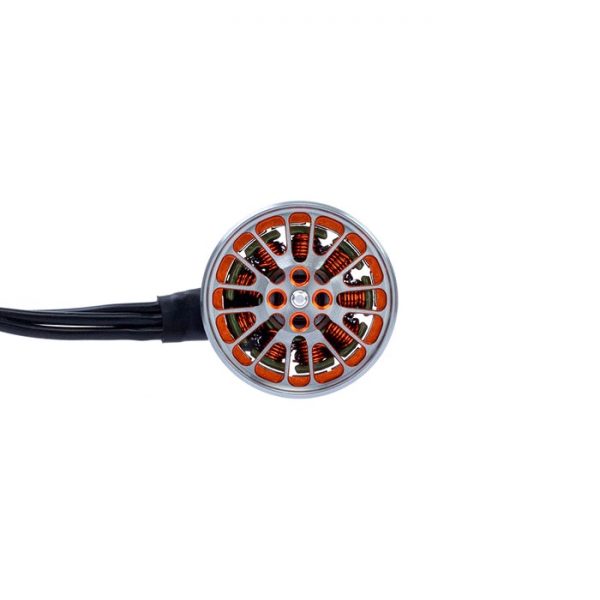

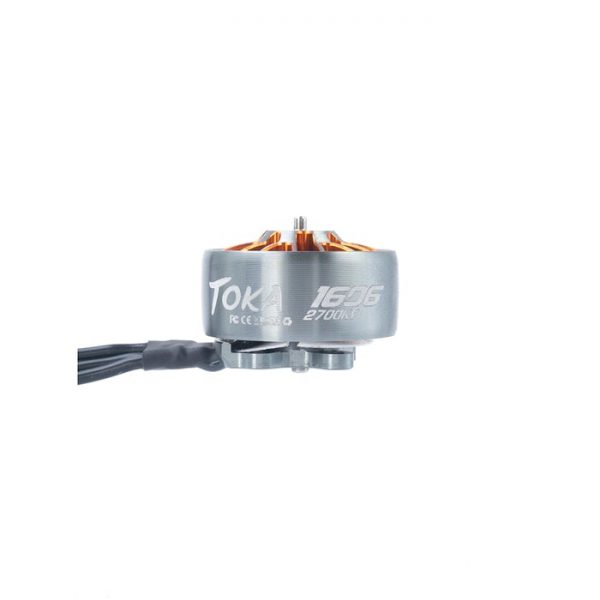

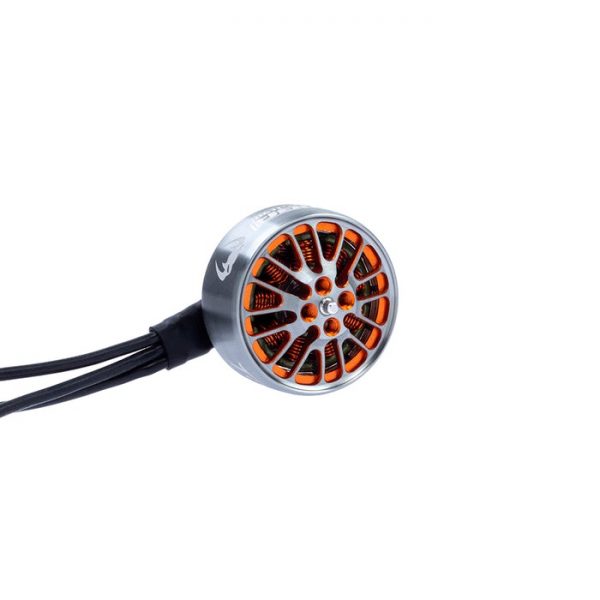

The Diatone Mamba Toka 1606 Motor is part of a new series of motors designed specifically for CineWhoops, such as the Diatone MX-C Taycan or any 3″-4″ build!
Specifications:
KV:2700
- Overall Dimension: Φ22.2×15mm
- Prop mounting shaft diameter:1.5mm
- Installation hole position:12×12mm,M2
- Prop: 3inch~4inch
- Bearing: 5*2*2.5
- Diameter:2mm
- Lead Wire Size:24AWG ×150mm
- Configuration:9N12P
- Magnet Wire: Class H,220℃ Enameled Wire
- Stator Diamter:16mm
- Stator Height:6mm
- Rated Voltage: 3~6S (12.6V~25.2V)
- Peak Current: 17.6A
- ldle Current:10V/0.5A
- Maximum Power: 409W
- Internal Resistance:164Ω
KV:3750
- Overall Dimension: Φ22.2×15mm
- Prop mounting shaft diameter:1.5mm
- Installation hole position:12×12mm,M2
- Prop: 3inch~4inch
- Bearing: 5*2*2.5
- Diameter:2mm
- Lead Wire Size:24AWG ×150mm
- Configuration:9N12P
- Magnet Wire: Class H,220℃ Enameled Wire
- Stator Diamter:16mm
- Stator Height:6mm
- Rated Voltage: 3~4S (12.6V~16.8V)
- Peak Current: 21.1A
- ldle Current:9v/0.8A
- Maximum Power: 338W
- Internal Resistance:114Ω
Includes
- 1 x Diatone Mamba Toka 1606 Motor (2700KV/3750KV options)
