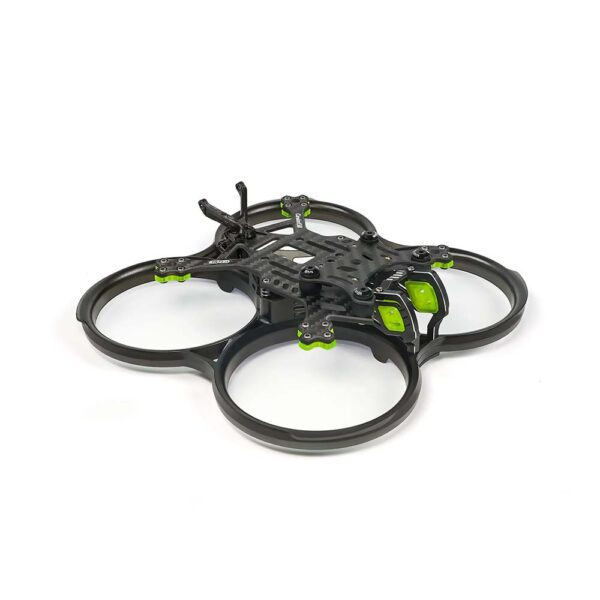

Cinebot 30 Frame O3 CT30 Geprc Framekit Cinebot30 Frame Kit:
The Cinebot 30 O3 Frame CT30 Geprc Framekit Cinebot30 Frame Kit version developed by the GEPRC team specifically for the O3 Air Unit is officially released.
The newly polished gimbal damping module can easily fix high-frequency vibration and jello issues. It can be mounted with multiple action cameras, TPU soft fixing method designed for O3 cameras, to prevent the camera IMU resonance vibration. AnothGEP-CT30 frame supports the installation of mainstream AIO flight controllers with 25.5mm*25.5mm mounting holes and is compatible with various VTX mounting holes on the market such as 20mm*20mm/25.5mm*25.5mm. With 12mm * 12mm motor mounting holes, can be installed with larger 15-18-20 series motors, with solid power output with a 3-inch propeller—ultra-light fuselage weight for more confident flying.
Tuned by GEPRC professionals with a high-quality production process, explore endless possibilities for your flight shooting. In the face of the headwind, we only go up to the wind, never go with the wind. Salute to the filmmakers!
Cinebot 30 Frame Specification:
- Brand: GEPRC
- Model: GEP-CT30 O3
- Motor to Motor: 127mm
- Isolation Plate: 2.0mm
- Main Plate: 3.0mm
- Bottom Plate: 1.5mm
- FC Mounting Hole: 25.5mm x 25.5mm
- VTX Mounting Hole: 20mm x 20mm /25.5 x 25.5
- Motor Mounting Hole: 12mm x 12mm
- FPV Camera Spacing: 20mm
- Suitable propeller size: 3-inch propeller
- Weight: 101.8g (without Led light strip) / 107.3g (with COB light strip)
Features
1. Design that combines engineering and aesthetics.
2. Quick-disassembly design, only need to remove 6 screws to upgrade or replace parts.
3. Selected high-toughness and impact-resistant PC +PET material for injection molding.
4. Aviation 7075-T aluminum alloy camera mounting bracket and fuselage aluminum column.
5. Propeller guard embedded ring Cob light strip, carefully tuned light effect. Color brightness in the day and night can be clearly displayed.
6. The newly developed gimbal shock absorption structure can disintegrate high-frequency jitter and jello effect. Easily carry a variety of action cameras.
7. Compatible with a variety of fpv systems with the program, choose to belong to your first-person view.

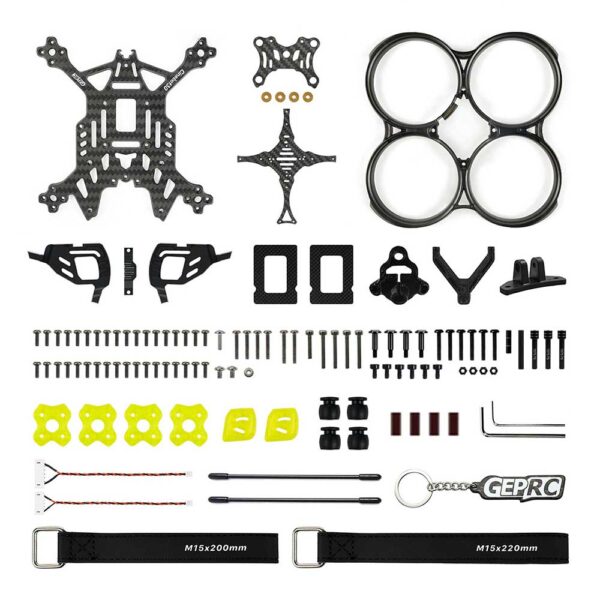

Includes
1 x Main Plate 3.0mm
1 x Bottom Plate 1.5mm
1 x Isolation Plate 2.0mm
1 x Set of Screws
1 x Bec Module (optional)
1 x Cob Light Strip (optional)
1 x Set of 3D Printed Parts
1 x 3-inch One-piece Injection-molded Propeller Guard
1 x Naked GoPro Base Mount
2 x Battery Non-slip Mat
2x Receiver Antenna Tube 100mm
1 x Battery Straps M15*200
1 x Battery Straps M15*220
1 x Naked GoPro Power Cable 4S Balance Head
1 x Naked GoPro Power Cable 6S Balance Head
1 x L-shaped Screwdriver 1.5mm
1 x L-shaped Screwdriver 2.0mm
1 x Carbon Fiber Keychain
2 x GEPRC Stickers
1 x Service Card
1 x Packaging Box
GEPRC Cinebot30 – 3-Inch FPV Drone with DJI O3 Air Unit and Glowing Prop Guards now Available
Checkout our Frames Collection by clicking the link below:
https://thefpvproject.com/product-category/frames/
FPV Lipo Battery info:
1S = 1 cell = 3.7V
2S = 2 cells = 7.4V
3S = 3 cells = 11.1V
4S = 4 cells = 14.8V
5S = 5 cells = 18.5V
6S = 6 cells = 22.2V
For example, we call a 14.8V battery a “4-cell” or “4S” battery.
LiPo battery is designed to operate within a safe voltage range, from 3V to 4.2V. Discharging below 3V could cause irreversible performance loss and even damage to the battery. As we read above overcharging above 4.2V could be dangerous and eventually cause a fire.
However, it’s advisable to stop discharging when it reaches 3.5V for battery health reasons. For example for a 3S Lipo, the max voltage is 12.6V, and you should land when the voltage reaches 10.5V (at 3.5V per cell).
