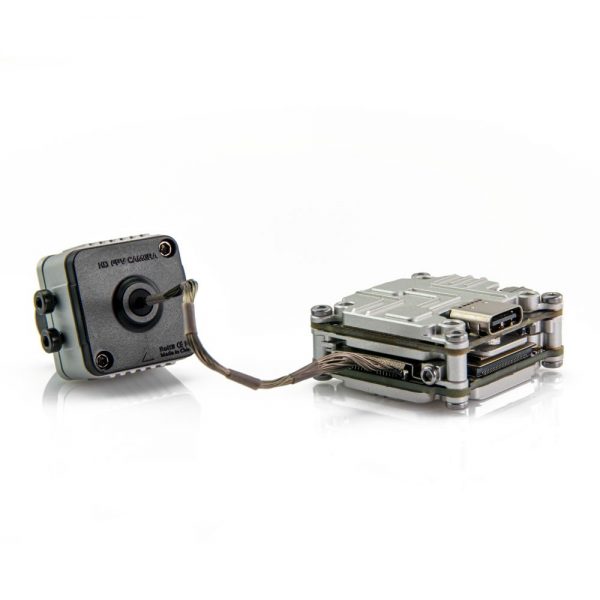

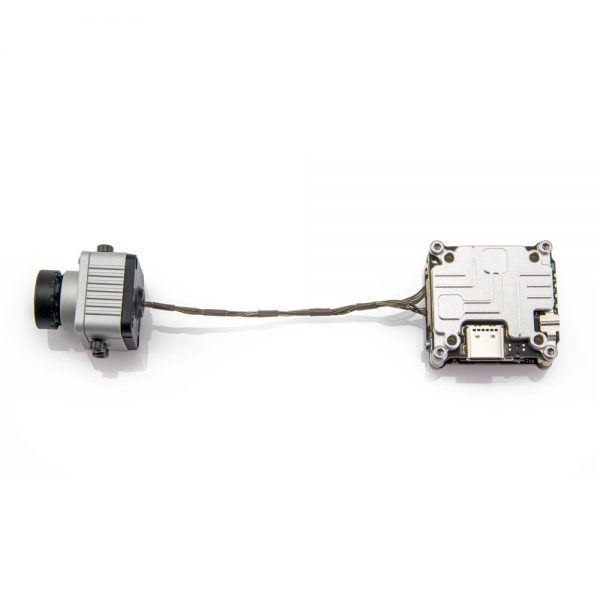

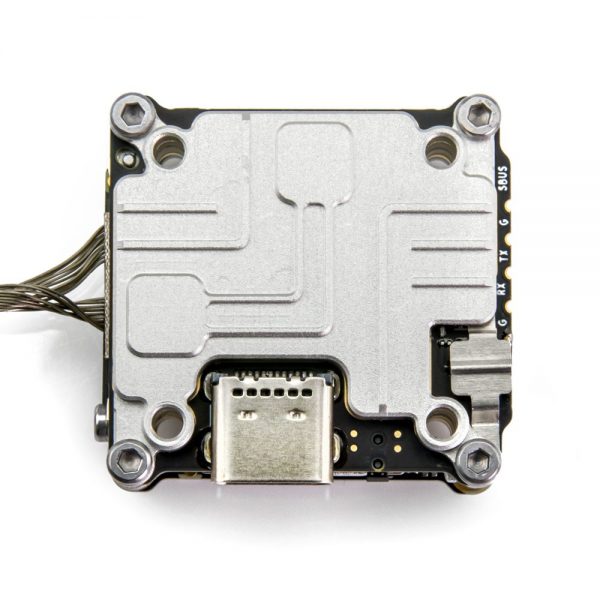

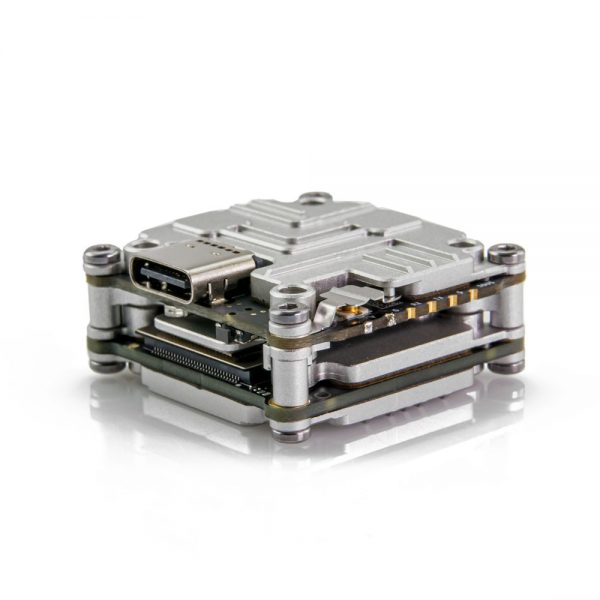

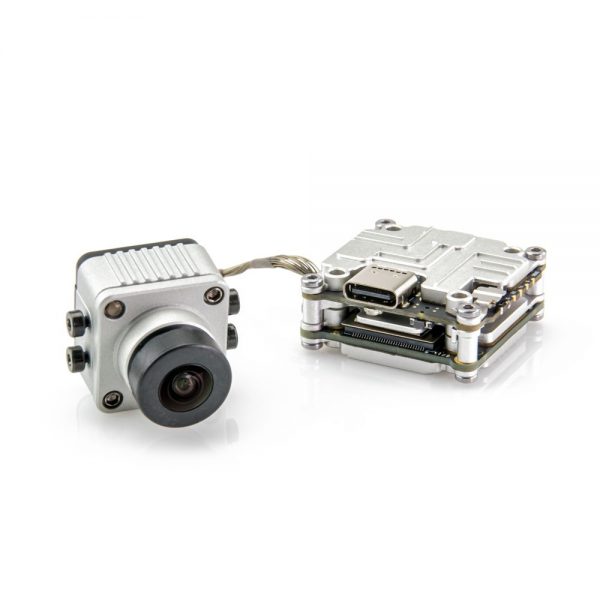

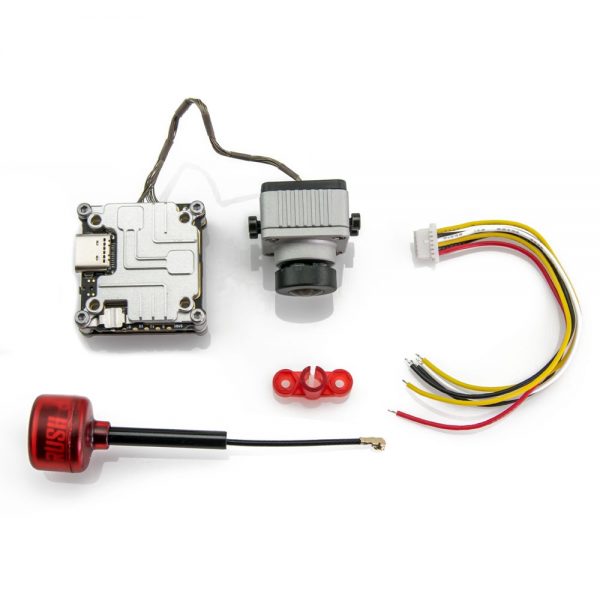

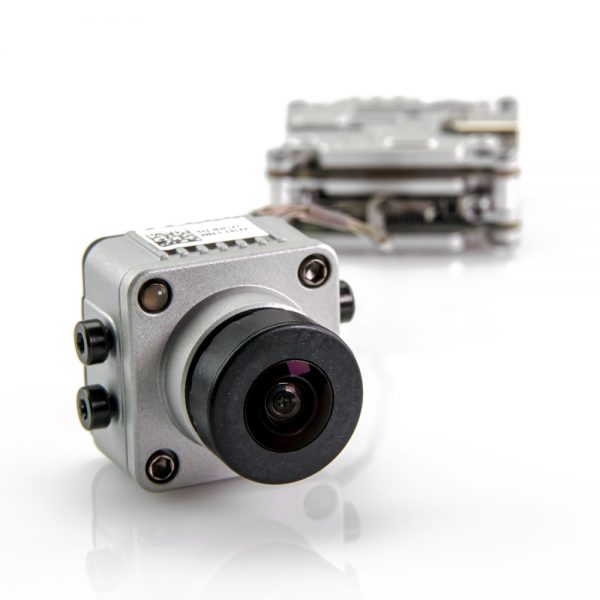

Caddx Vista Digital HD System for DJI HD FPV (Original Vista Kit w/ DJI Cam) Description:
Caddx has worked with DJI to release a new generation of digital HD FPV transmitters. The Vista was fully authorized by DJI and compatible with their HD FPV System. Even better, the Caddx Vista was engineered to be lighter and smaller than the DJI Air Unit Module and also comes with mounting holes for easier installation onto your quad!
- Now shipping with 12cm cable.
- Module: 30.45 x 29 x 13mm
- Camera: 27.4 x 21.1 x 20.1mm
- Weight: 29g (inc. camera); Module: 19g
- Antenna Connector: u.FL
- Operating Frequency: 5.725-5.85GHz
- Transmitter Power (EIRP)
- FCC/SRRC/MIC: <20dBm
- CE: <14dBm
- I/O Interface: USB-C, IPEX, 3-in-1 Port
- Min. Latency: Low Latency Mode (720p 120fps): 21-28ms
- High-Quality Mode (720p 60fps): 30-40ms
- Max Transmission Distance: FCC/SRRC: 4km; CE: 0.7km
- Input Power: 7.4-26.4v
- Sensor: 1/3.2″ CMOS
- Effective Pixel: 4M
- Lens: 2.1mm f/2.1
- Shutter: Rolling Shutter
- ISO: 100-25600
- FOV: 150(D);122(H);93(V)
