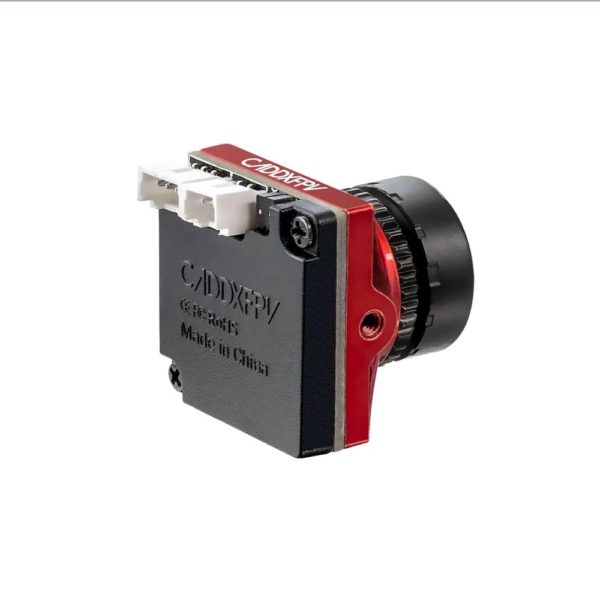

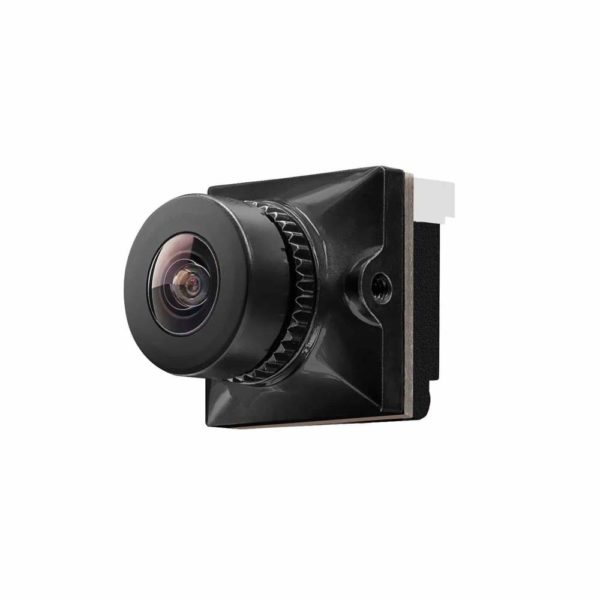

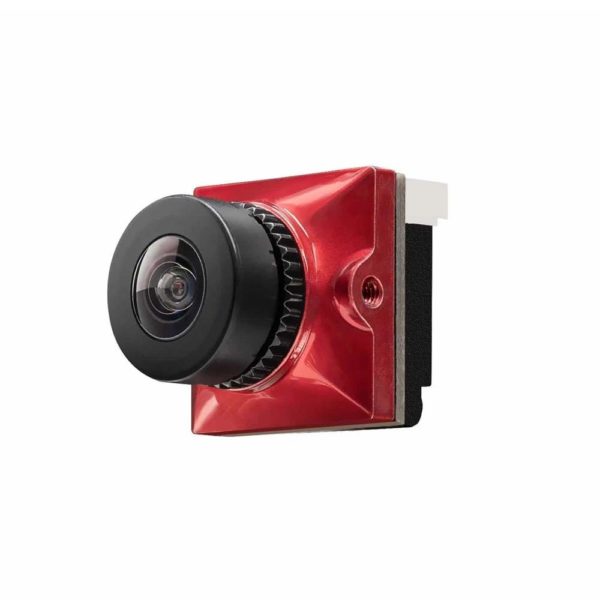

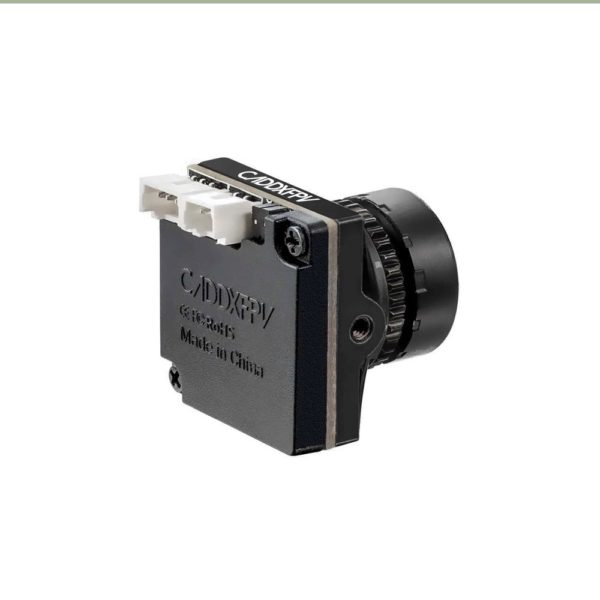

Caddx Ratel 2 Micro Starlight 1200TVL Low Latency FPV Camera

2,499.00

Overview:

The Caddx Ratel 2 HDR Starlight 1200TVL FPV Camera features superb night vision, clear and sharper images. The Ratel 2 is equipped with high quality 1/1.8″ inch starlight, a Super WDR sensor, providing up to 0.0001 sensitivity of lux, 8ms low latency, 4:3/16:9, and PAL/NTSC switchable, and a separate OSD menu.

Features:



  • High quality 1/1.8″ Inch starlight HDR sensor
  • OSD menu
  • Switch between PAL and NTSC video standards or between 4:3 and 16:9 video formats
  • Ultra-low latency of 8ms

Out of stock

SKU: SKU77990368887 Category:
Spread the love

Caddx Ratel 2 Micro Starlight 1200TVL Low Latency FPV Camera Description:



The Caddx Ratel 2 HDR Starlight 1200TVL FPV Camera features superb and night vision, clear and sharper images. The Ratel 2 is equipped with high-quality 1/1.8″ inch starlight, a Super WDR sensor, providing up to 0.0001 sensitivity of lux, 8ms low latency, 4:3/16:9, and PAL/NTSC switchable, and a separate OSD menu.

Features:

  • High-quality 1/1.8″ Inch starlight HDR sensor
  • OSD menu
  • Switch between PAL and NTSC video standards or between 4:3 and 16:9 video formats
  • Ultra-low latency of 8ms

Specifications:

  • Brand Name: Caddx
  • Item Name: Ratel
  • Color: White
  • Lens: 2.1mm
  • Image Sensor: 1/1.8″ Inch starlight HDR sensor
  • Horizontal Resolution: 1200TVL
  • FOV: 165 Degree
  • Min. Latency: 8ms
  • TV System: NTSC & PAL (changeable)
  • Image: 16:9 & 4:3 (changeable)
  • WDR: Super WDR (HDR)
  • Min. Illumination: Starlight
  • Synchronization: Internal
  • Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
  • S/N Ratio: >60dB (AGC OFF)
  • Video Output: CVBS
  • DNR: 3-DNR
  • Language: ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN
  • Day/Night: Auto/Color/B&W/EXT
  • Dimensions: 19mm*19mm*20mm
  • Wide Power Input: DC 5-40V
  • Work Temperature: -20~+60°C
  • Weight: 5.9g

Includes:

  • 1 x Caddx Ratel 2 HDR FPV Camera
  • 1 x 5D-OSD Menu Board
  • 1x 2Pin Silicon Cable
  • 1x 3Pin Silicon Cable
  • 1 x 1.5mm Allen Wrench





Weight 0.3 kg
Dimensions 18 × 10 × 10 cm
KV Rating

1700 KV, 2450 KV
