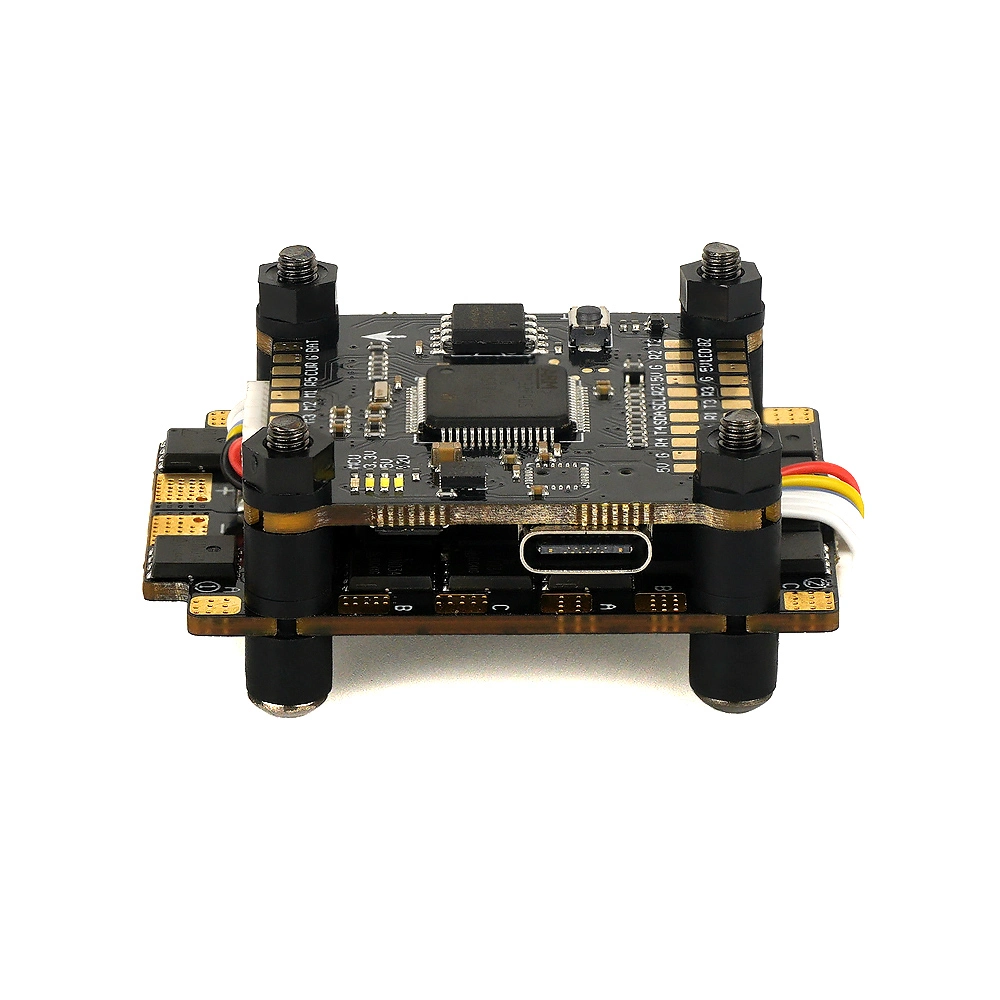

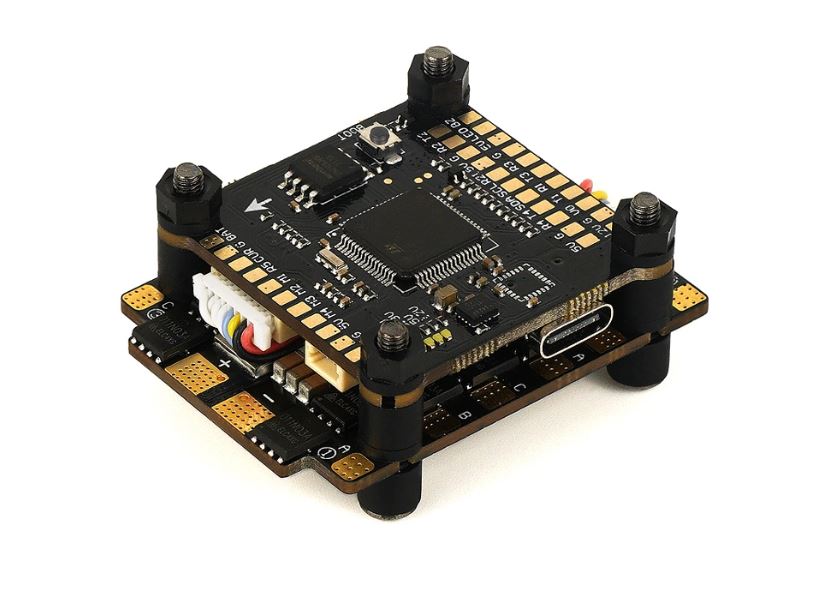

Axisflying Argus ECO 55A+F405 STACK 30×30 Stack Features and Specifications:
The Axisflying Argus ECO 55A+F405 STACK is a revolutionary product in the world of drone technology. This high-performance stack combines the power of a 55A ESC (Electronic Speed Controller) with the advanced capabilities of an F405 flight controller. The result is a seamless, efficient, and robust system that enhances the performance of your drone, making it an ideal choice for both hobbyists and professionals.
Unmatched Performance of the 55A ESC
The 55A ESC is a critical component of the Axisflying Argus ECO 55A+F405 STACK. It is responsible for controlling the speed of the drone’s motors, translating the pilot’s commands into precise motor control. The 55A rating signifies its ability to handle high currents, ensuring that your drone can perform even the most demanding maneuvers without a hitch.
High Current Handling
The 55A ESC can handle high currents, making it suitable for powerful drones. This high current handling capability ensures that your drone can perform aggressive maneuvers, high-speed flights, and heavy lifting tasks without the risk of the ESC overheating or failing.
Smooth and Precise Control
The ESC’s advanced algorithms provide smooth and precise control over the drone’s motors. This results in better flight performance, allowing the drone to execute complex maneuvers with ease. Whether you’re flying in a straight line or performing intricate aerial stunts, the 55A ESC ensures that your drone responds accurately to your commands.

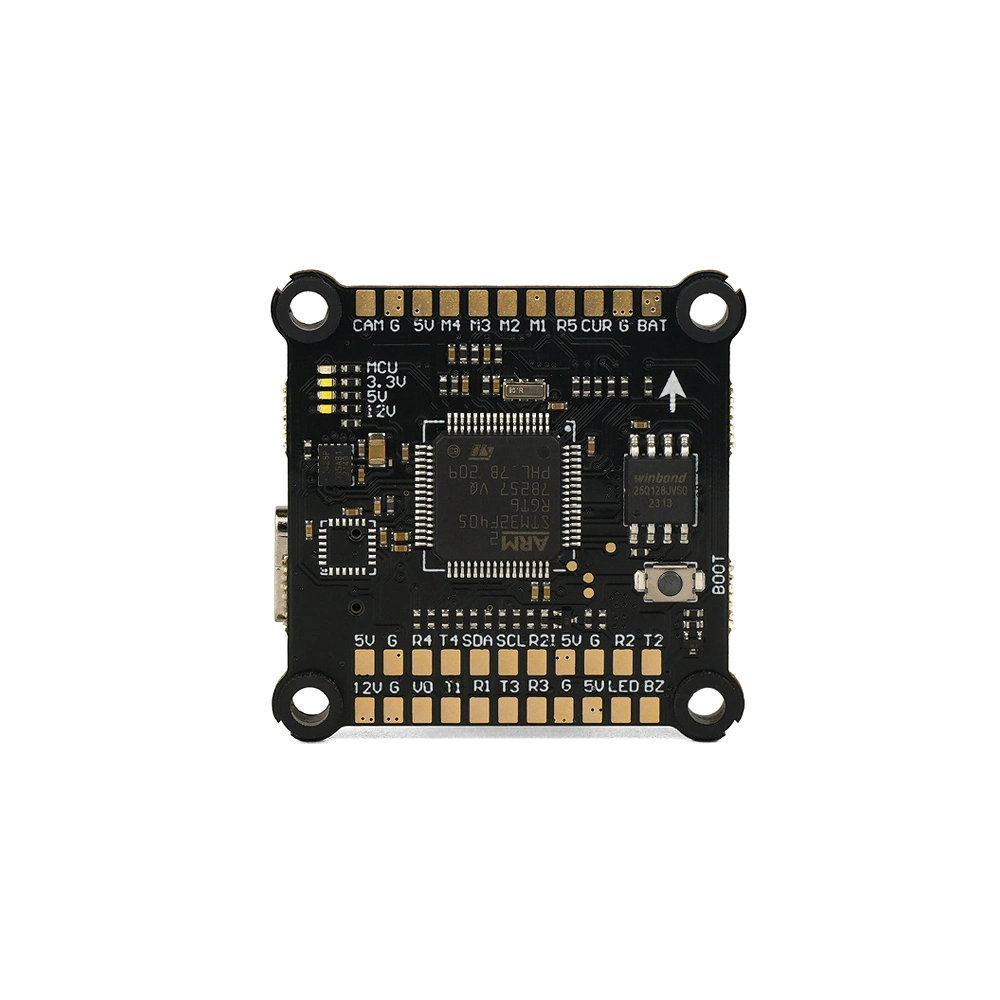

The Advanced F405 Flight Controller
The F405 flight controller is the brain of the Axisflying Argus ECO 55A+F405 STACK. It processes the pilot’s commands and the drone’s sensor data to control the drone’s flight.
Powerful Processing Capabilities
The F405 flight controller features a powerful STM32F405RGT6 microcontroller. This 32-bit processor runs at a clock speed of 168MHz, providing the computational power needed to process complex flight algorithms in real-time.
The F405 flight controller offers a wide range of connectivity options. It supports SBUS, PPM, and DSMX receivers, allowing you to use it with a variety of transmitters. It also features a dedicated port for GPS modules, enabling advanced features like GPS hold, return to home, and waypoint navigation.
The Synergy of the 55A ESC and F405 Flight Controller
The combination of the 55A ESC and the F405 flight controller in the Axisflying Argus ECO 55A+F405 STACK results in a system that offers superior performance, versatility, and reliability.
Argus is axisflying electronic series that includes ESC FC stack. The lightweight Argus ECO will reduce the weight of the whole FPV to a greater extent while providing stable and excellent control.
– The Argus ECO is significantly lighter than the Argus Pro with its aluminum housing.
– The FC supports up to 4 motor outputs, easily build your drone.
– Quickly check the working status of the FC by turning on and off the corresponding status indicator light.
– Open circuit board, free soldering equipment.
– 55A 6S BlHeli-S ESC / Axisflying F405 FC
– ICM 42688 Gyro
– Blackbox 16MB
– UART: 5
– HD/Analog Supported
– GPS Supported

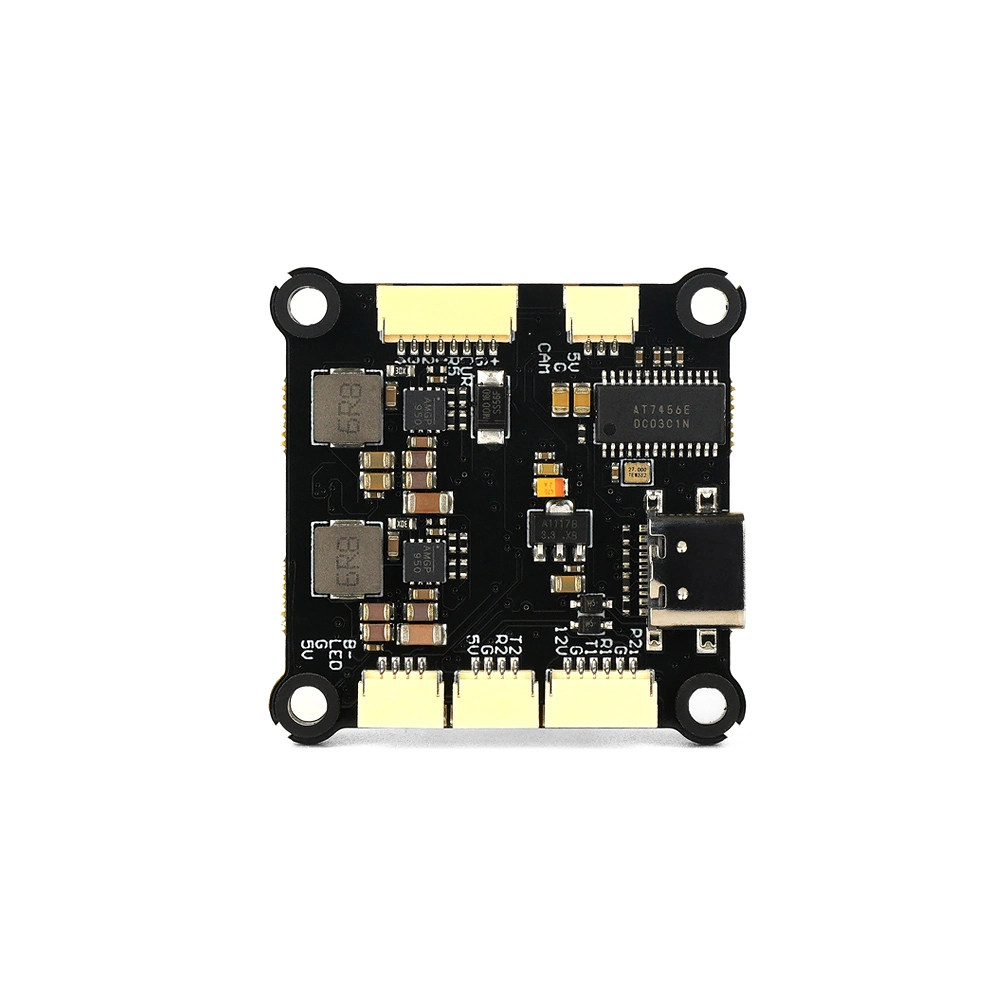

Argus ECO 55A ESC
– Size: 36*36*15.95 mm / Weight: 13.5g / Mounting Holes: M3-30.5*30.5mm
Alright, let’s dive into the world of PID loop frequencies!
So, imagine you’re playing a really immersive video game. You press a button on your controller, and your character responds instantly on the screen, right? Now imagine if there was a delay between your button press and the character’s action. That would be a bummer, wouldn’t it?
Well, in the world of drones, we have a similar situation. The drone’s flight controller is constantly making adjustments to keep the drone flying smoothly. This happens through something called the PID loop, which stands for the Proportional, Integral, and Derivative loop.
The PID loop is like the brain of the drone. It takes information from the sensors, decides how the drone should respond, and then sends commands to the motors. This entire process happens repeatedly and at a very fast pace. The frequency at which this process repeats is known as the PID loop frequency. It’s like the frame rate in a video game – the higher the frame rate, the smoother the game looks.
Now, when we talk about 2K, 4K, and 8K PID loop frequencies, we’re talking about how many times per second this process happens. So, 2K means the PID loop runs 2000 times per second, 4K means it runs 4000 times per second, and 8K means it runs 8000 times per second. It’s like choosing between running, cycling, or driving – each one is faster than the last!
So, you might be thinking, “Well, obviously 8K is the best because it’s the fastest, right?” Not necessarily! Just like driving a car super fast isn’t always the best option (you could get a ticket or crash ), running your PID loop at super high frequencies isn’t always the best choice.
For one, it can make your flight controller work harder, which can lead to overheating. It can also make your ESC protocol more prone to errors, kind of like how a fast internet connection can sometimes be unstable.
So, it’s all about finding the right balance. Just like how you wouldn’t use a race car to go to the grocery store, you wouldn’t necessarily use an 8K PID loop frequency for a casual drone flight. It all depends on what you’re using your drone for.
I hope this helps to understand what PID loop frequencies are all about! If you have any more questions, feel free to ask. Happy droning!
